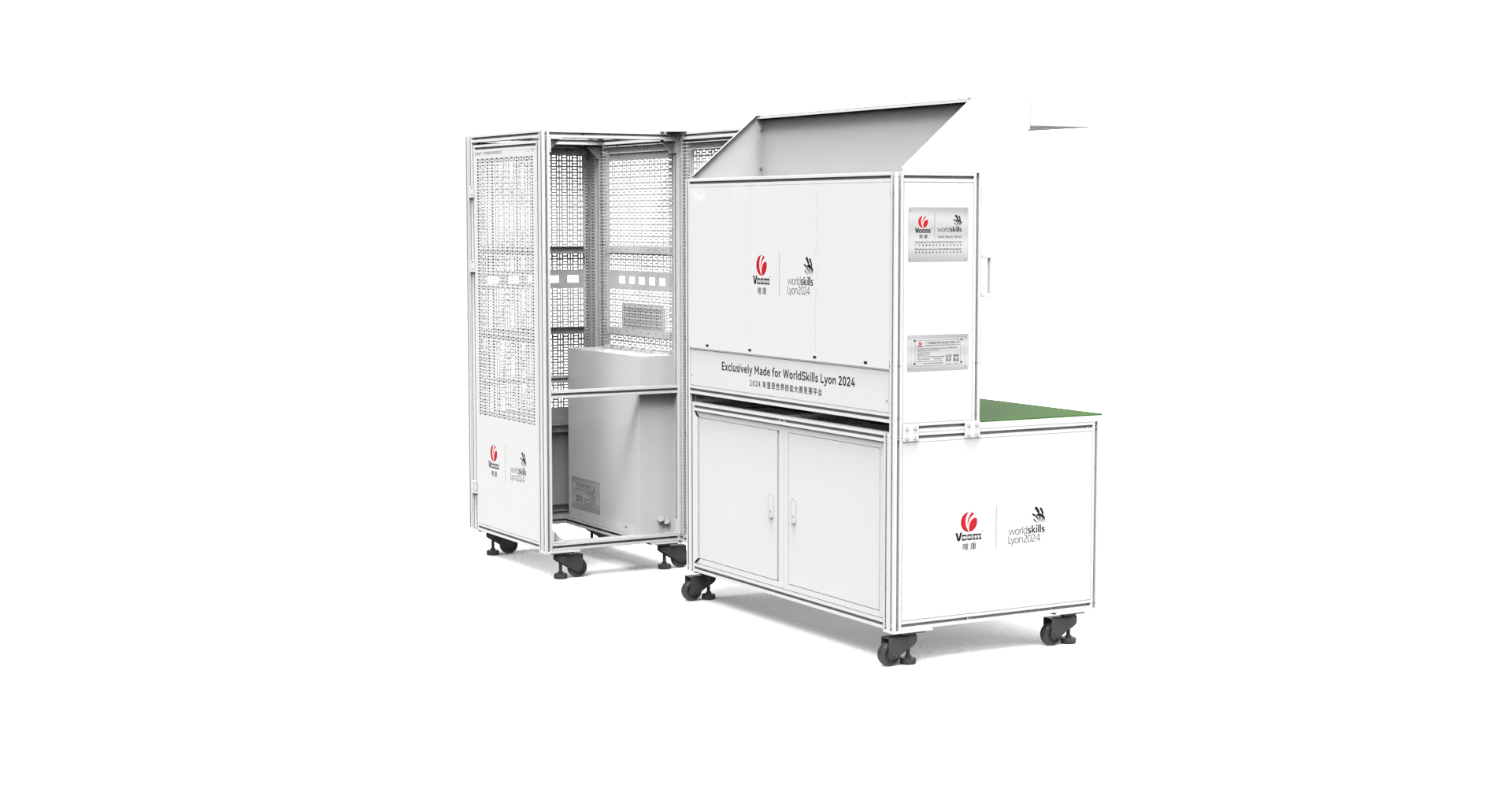

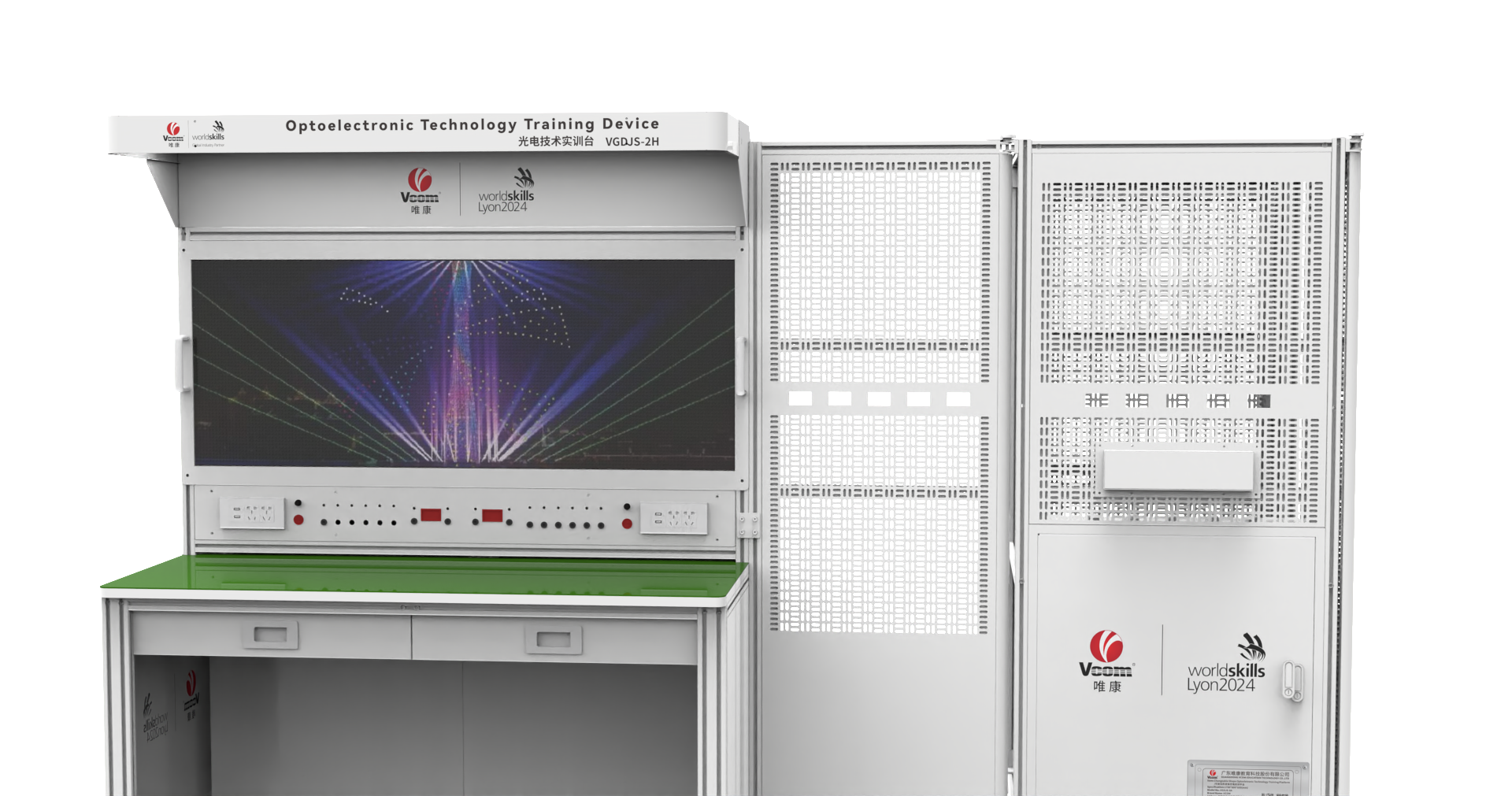

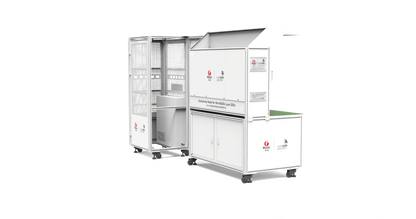

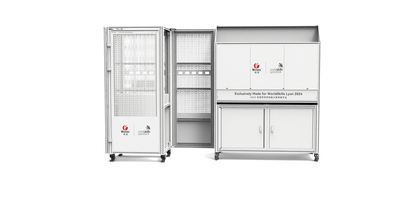

Expandable Multi-Functional Training Module

I. Product Overview
The training module meets the needs of skills training for optoelectronics application terminal product manufacturing, optoelectronics application system implementation, and optoeletronics product and system maintenance and optimization. Centered on the concepts of optoelectronic energy saving, environmental protection, health, and intelligence, it fully develops the richness of optoelectronic technology applications, combining different modules through software and hardware to comprehensively assess students' professional knowledge and skill levels. This training module meets the WorldSkills Competition requirements for the Optoelectronic Technology project.

II. Product Specifications
1. Dimensions: Length 750-800mm*Width 550-600mm*Height 1650-1750mm. The four walls are open structures and can be expanded to install and debug photonics terminal products.
2. Structure: Open structure using aluminum profiles and sheet metal as main materials, high-strength electrostatic spraying, and perforated plate design for all four walls, facilitating module installation and fixing at any position on the walls. Equipped with industrial casters with adjustable height foot cups for easy mobility and stable placement.
3. Power Supply Box: Designed with an embedded power supply box within the training workstation, providing AC220V, DC5V, DC12V, DC24V, and DC36V power interfaces.
4. Operation Capacity: Can accommodate 2-4 operators simultaneously.

III. Product Configuration
1. 1 set of walls of Expandable Multi-Functional Training Module.
2. 1 set of Power Assembly Box.
Configuration: Supports different module installations with the ability to independently or jointly control the power during practical operations. This enhances trainees' skills in power box application and the implementation of power box design layouts.
3. Neon Light Module Kit: 1 set:
Includes 1 acrylic board for neon lights and 1 power supply with switch.
4. Programmable LED Light Strip Controller Kit: 1 set.
Configuration: A programmable light strip controller with a programming control chip, compatible with programmable color light strips.
5. Power Configuration: Equipped with a 220V, 16A leakage protection main switch. Includes DC power supplies of 5V, 12V, and 24V.
IV. Product Functions
1. Multi-Functional Electrical Box Configuration: Capable of meeting trainees' needs for different module installations, power supply, and electrical layout skill enhancement.
2. Supports Design and Implementation of Various Neon Light Strip Patterns: Allows for effect tuning and adjustments.
3. Encourages Creative Design for Neon Light Decoration: Supports different spatial layout designs, enhancing trainees' creativity in neon light decoration schemes.
4. Supports Intelligent optoelectronic Control System: Facilitates the design, engineering implementation, terminal debugging, and presentation of effects.
5. Supports Optoelectronic Application System: Enables the design, engineering implementation, terminal debugging, and presentation of effects.
6. Sensors and Controllers: Operable under low voltage and wide voltage power supply conditions, allowing for the design, editing, and output of program effects via programmable software.
